HS-5065MG Sub-Micro Digital Metal Gear Servo

Item No. HRC35065S
HS-5065MG Sub-Micro Digital Metal Gear Servo
HS-5065MG Sub-Micro Digital Metal Gear Servo
HS-5065MG Sub-Micro Digital Metal Gear Servo
HS-5065MG Sub-Micro Digital Metal Gear Servo
Brand Logo
5 out of 5 Customer Rating

HS-5065MG Sub-Micro Digital Metal Gear Servo

Item No. HRC35065S
$37.99
Earn points on this item ⓘ
In Stock
Selected Store
The link to HS-5065MG Sub-Micro Digital Metal Gear Servo has been copied

Product Details

Hitec raised the bar by offering the ever popular HS-65 in a new digital version! The HS-5065MG High Performance Micro Servo features Hitec's digital, programmable circuit for incredible resolution, centering and holding torque; also featuring metal gears, a top-ball bearing, and at 31 oz./in. of torque with a quick transit time of 0.11 sec at 6 volts, it is no doubt THE choice for high performance micro helicopters, electric park flyers, and 1/18 scale cars.
Key Features
  • Speed: @4.8V .14sec/60' / @6.0V .11sec/60'
  • Torque: @4.8V 25oz/in / @6.0V 31oz/in
  • Top Selling Digital Feather Servo
  • Ball Bearing-Supported Output Shaft
  • Standard Programmable Digital Circuit for More Holding Power
  • High Torque and High Speed
  • Accurate Centering
In The Box
  • (1) HS-5065MG Sub-Micro Digital Metal Gear Servo
HS-5065MG Sub-Micro Digital Metal Gear Servo
Quick Links
Manuals & Support

Overview

Hitec has raised the bar by offering the ever popular HS-65 in a new digital version. The HS-5065MG High Performance Micro Servo features Hitec's digital, programmable circuit for incredible resolution, centering and holding torque; also featuring metal gears, a top-ball bearing, and at 31 ounce-inches of torque with a quick transit time of 0.11 sec at 6 volts, it will no doubt be THE choice for high performance micro helicopters, electric park flyers, and 1/18 scale cars.

Detailed Information

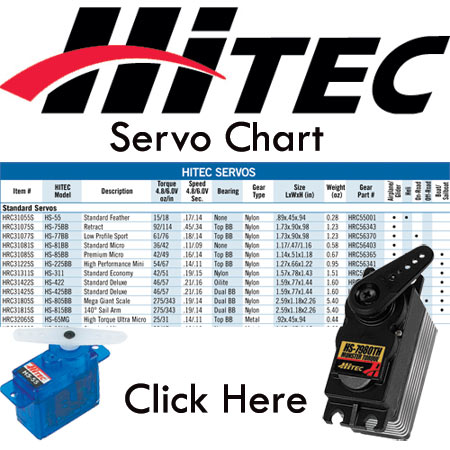

Hitec Servo Chart

Product Specifications

Bearing Top Ball Bearing
Bushing Or Bearing Bearing
Gear Type Metal
Wire Gauge 28 AWG
Current Draw Stall 1,200 mA
Motor Type Brushed
Servo Operating Voltage 4.8 - 6.0V
Programmable Yes
Servo Size Category Sub-Micro
Current Draw Idle 3 mA
Product Width 0.45" (11 mm)
Connector Type Universal
Maximum Servo Speed 0.14 sec/60 deg @ 4.8V, 0.11 sec/60 deg @ 6.0V
Product Length 0.92" (23 mm)
Application Small Aircraft, Helicopters, Cars
Product Weight 0.42oz (11.9g)
Water-Resistant No
Deadband 2µs
Input Voltage 4.8V ~ 6.0V
Product Height 0.94" (24 mm)
Servo Type Digital
Maximum Servo Torque 25oz/in @ 4.8V, 31oz/in @ 6.0V
