Twin Timber 1.6m PNP

Item No. EFL23875
Brand Logo
3.1 out of 5 Customer Rating

Twin Timber 1.6m PNP

Item No. EFL23875
$349.99
Need To Complete
14.8V 4000mAh 4S 30C Smart LiPo Battery: IC3
EFL23875 SPMX40004S30
14.8V 4000mAh 4S 30C Smart LiPo Battery: IC3
In Stock
$69.99
14.8V 3200mAh 4S 100C Smart LiPo Battery: IC3
EFL23875 SPMX32004S100
14.8V 3200mAh 4S 100C Smart LiPo Battery: IC3
In Stock
$69.99
11.1V 3200mAh 3S 30C Smart G2 LiPo Battery: IC3
EFL23875 SPMX323S30
11.1V 3200mAh 3S 30C Smart G2 LiPo Battery: IC3
In Stock
$44.99
14.8V 3200mAh 4S 50C Smart G2 LiPo Battery: IC3
EFL23875 SPMX324S50
14.8V 3200mAh 4S 50C Smart G2 LiPo Battery: IC3
In Stock
$64.99
0 Item Selected Items Selected
S155 G2 1x55W AC Smart Charger
EFL23875 SPMXC2050
S155 G2 1x55W AC Smart Charger
In Stock
$59.99
S100 1x100W USB-C Smart Charger
EFL23875 SPMXC2090
S100 1x100W USB-C Smart Charger
In Stock
$24.99
S1100 G2 1x100W AC Smart Charger
EFL23875 SPMXC2080
S1100 G2 1x100W AC Smart Charger
In Stock
$99.99
S1200 G2 AC 1x200W Smart Charger
EFL23875 SPMXC2020
S1200 G2 AC 1x200W Smart Charger
In Stock
$149.99
S2100 G2 2x100W AC Smart Charger
EFL23875 SPMXC2000
S2100 G2 2x100W AC Smart Charger
In Stock
$179.99
0 Item Selected Items Selected
NX8 8-Channel DSMX Transmitter Only
EFL23875 SPMR8200
NX8 8-Channel DSMX Transmitter Only
In Stock
$399.99
NX10 10-Channel DSMX Transmitter Only
EFL23875 SPMR10100
NX10 10-Channel DSMX Transmitter Only
In Stock
$549.99
NX10SE Special Edition 10-Channel DSMX Transmitter Only
EFL23875 SPMR10110
NX10SE Special Edition 10-Channel DSMX Transmitter Only
In Stock
$799.99
0 Item Selected Items Selected
AR637T DSMX 6-Channel AS3X & SAFE Telemetry Receiver
EFL23875 SPMAR637T
AR637T DSMX 6-Channel AS3X & SAFE Telemetry Receiver
In Stock
$114.99
AR6610T DSMX 6-Channel Telemetry Receiver
EFL23875 SPMAR6610T
AR6610T DSMX 6-Channel Telemetry Receiver
In Stock
$79.99
AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver
EFL23875 SPMAR8360T
AR8360T DSMX 8-Channel AS3X & SAFE Telemetry Receiver
In Stock
$129.99
AR8020T DSMX 8-Channel Telemetry Receiver
EFL23875 SPMAR8020T
AR8020T DSMX 8-Channel Telemetry Receiver
In Stock
$89.99
0 Item Selected Items Selected
Float Set: Timber, Air Tractor
EFL23875 EFL5261
Float Set: Timber, Air Tractor
In Stock
$36.99
0 Item Selected Items Selected

In Stock
Selected Store
|

Product Details

The E-flite® Twin Timber 1.6m is not "just another Timber" – it offers the same easy handling and STOL capabilities Timber models are known for, along with additional benefits, performance, and unique abilities due to its twin power setup!
Key Features
  • Not just another Timber; it’s the most capable, durable, stable, and unique Timber model yet
  • A great first-ever twin-powered, everyday sport and STOL-capable model for a wide range of pilots
  • 40-amp Spektrum™ Avian™ Dual Smart ESC provides real-time battery voltage, temps, and other data via compatible receivers and transmitters
  • High-power 3S and 4S compatible outrunner motors with counter-rotating 3-blade props
  • Convenient top hatch with large battery compartment to fit 3S 2200mAh to 4S 5000mAh batteries
In The Box
  • (1) E-flite® Twin Timber® 1.6m
  • (6) Spektrum™ Metal-Geared Servos (installed)
  • (2) Spektrum Brushless Outrunner Motors (installed)
  • (1) Spektrum Avian™ Dual 40A Brushless Smart Lite ESC (installed)
  • (1) Set of Optional-Use Leading Edge Slats
  • (1) Product Manual
Needed to Complete
  • (1) Full-range 5+ Channel Transmitter and Receiver
  • (1) 3S 11.1V or 4S 14.8V 2200–5000mAh LiPo with EC3™ or IC3™ Connector
  • (1) Compatible LiPo Charger
Twin Timber 1.6m PNP

Introduction

The E-flite® Twin Timber 1.6m offers the same easy handling and STOL capabilities Timber models are known for – along with additional benefits, performance, and unique abilities due to its twin power setup – to make it the most capable, durable and stable Timber yet! The specially-tuned motors are compatible with popular 3S and 4S 2200–5000mAh batteries and are matched to an exclusive "dual" Spektrum Avian Smart ESC. The BNF Basic version is also equipped with an AR637TA receiver to deliver real-time telemetry data – plus differential thrust and reversing for unique aerobatic and other capabilities – along with AS3X® and SAFE® Select technologies. The airframe is finished in a fresh and modern trim scheme that features functional flaps plus LED landing, navigation, and strobe lights. It also includes optional-use leading edge slats and can be flown from water using the optional floats (sold separately).

Features

  • Not just another Timber; it's the most capable, durable, stable, and unique Timber model yet
  • A great first-ever twin-powered, everyday sport and STOL-capable model for a wide range of pilots
  • Incredible Short Takeoff and Landing (STOL) plus sport and aerobatic flight capabilities
  • 40-amp Spektrum Avian Dual Smart ESC provides real-time battery voltage, temps, and other data via compatible receivers and transmitters
  • High-power 3S and 4S compatible outrunner motors with counter-rotating 3-blade props
  • Convenient top hatch with large battery compartment to fit 3S 2200mAh to 4S 5000mAh batteries
  • Two-piece wing with composite wing joiner plus a custom-designed clip in the fuselage to hold the joiner when the wing is separated
  • Combined connectors make installing/removing the wing easier for more convenient storage and transport
  • Oversized control surfaces with double-beveled hinge lines for added control and aerobatic capabilities
  • Functional flaps that can travel both ways for optional use as full-span ailerons
  • Optional-use leading-edge slats for improved STOL and slow flight performance
  • Extremely durable shock-absorbing landing gear and oversized wheels/tires
  • Functional and factory-installed LED landing, navigation, and strobe lights
  • Lightweight yet durable composite-reinforced EPO construction
  • Six durable, factory-installed metal-geared servos and linkages
  • Optional floats with steerable rudders for flying from water (sold separately)
  • Fast and easy assembly – no glue required

Overview

The E-flite® Twin Timber 1.6m is not "just another Timber with another motor" – it's the most capable, durable, stable and unique Timber yet! All the popular features from other Timber models are there: shock-absorbing landing gear with oversized, tundra-style wheels; optional-use leading edge slats; functional flaps; and an LED lighting system with landing, navigation, and strobe lights. The Twin Timber 1.6m also features a large top hatch for faster, easier battery changes. Plus, it's equipped with the strongest landing gear installed on a Timber model yet to improve the durability and STOL capability when flying from rough terrain! The more efficient twin brushless motors are 3S and 4S-compatible and are matched to an exclusive 40-amp Spektrum Avian Dual Smart ESC that can provide a variety of real-time power system telemetry data with Smart and non-Smart batteries via compatible receivers (including the AR637TA installed in the BNF® Basic version) and Spektrum AirWare equipped transmitters. The BNF® Basic version is equipped with an AR637TA receiver to provide full-range, real-time telemetry data, including battery voltage, ESC temp, and more — plus differential thrust and motor reversing for special ground handling and other capabilities — along with the benefits of AS3X® and optional-use SAFE® Select technologies. The larger 2-piece wing adds to the stability, and oversized control surfaces with flaps that can travel both ways offer control and capabilities like Timber X models, including optional-use full-span ailerons. Combined connectors make it easier to install and remove the wing, and there's even a custom-designed clip in the fuselage that holds the wing joiner so you don't lose it when the wing is separated. Best of all, the wing-mounted motors make it nearly impossible to break props or damage the motor and mounts if you ever nose over! They also provide fantastic clearance when flying with the optional floats also used for Timber X 1.2m and Timber 1.5m models. And it all adds up to make this a great first twin-powered, Short Take Off and Landing (STOL), everyday sport and even aggressive aerobatics capable model for a wide range of pilots!

Video Overview

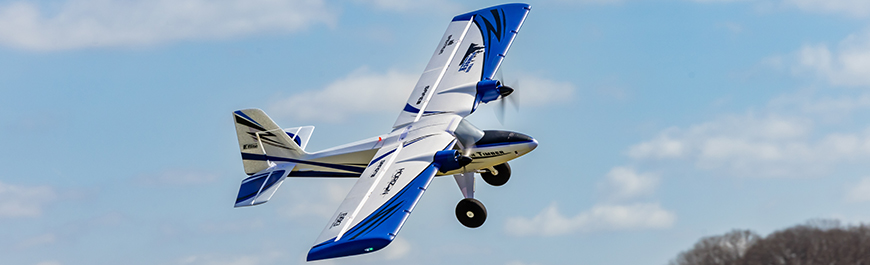

EFL23875 header image
Plug-N-Play<sup>®</sup> Completion Level
Plug-N-Play® Completion Level

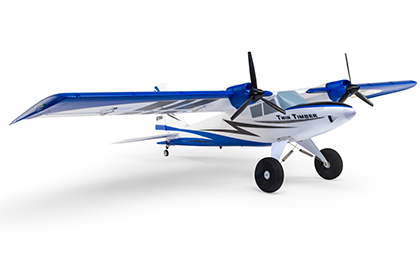

The Plug-N-Play (PNP) version comes out of the box with a factory-installed power system and servos that are ready to connect to the compatible receiver of your choice (sold separately), plus the transmitter and battery you provide (also sold separately). Install the receiver, finish any final assembly, and fly!



Smart Technology
Smart Technology

Both the PNP and BNF Basic versions are equipped with an exclusive Spektrum Avian Dual Smart ESC that can provide a variety of real-time power system-related telemetry data including battery voltage, ESC temp, and more – with Smart and non-Smart batteries – via compatible receivers (including the AR637TA installed in the BNF® Basic version) and Spektrum AirWare equipped transmitters (including the DX6e and 8e, DX6 G2/3 and 8 G2, the DX9, NX6, 8 and 10, iX12, iX14, iX20, and others) while you fly. Plus, reversing and differential thrust offer improved ground handling for easier taxiing, takeoffs, and landings, along with the ability to perform special aerobatic maneuvers.



Versatile Gear Options
Versatile Gear Options

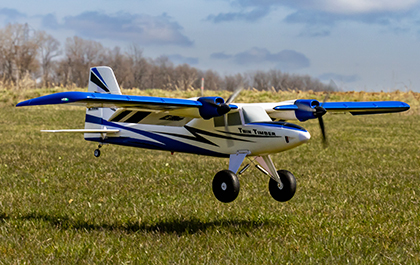

Thick grass, gravel paths, dirt trails— even local lakes and ponds—you can fly off of these and many other surfaces that are impossible for most models of this size to handle. The shock-absorbing landing gear is the strongest installed on a Timber model yet and is equipped with oversized, tundra-style wheels/tires to soak up the bumps of rough surfaces. The optional float set (sold separately) features dual water rudders for superb steering control. Whichever gear option you choose to fly with, both are easy to install and can be swapped out in minutes.



STOL (Short Takeoff and Landing) Capable
STOL (Short Takeoff and Landing) Capable

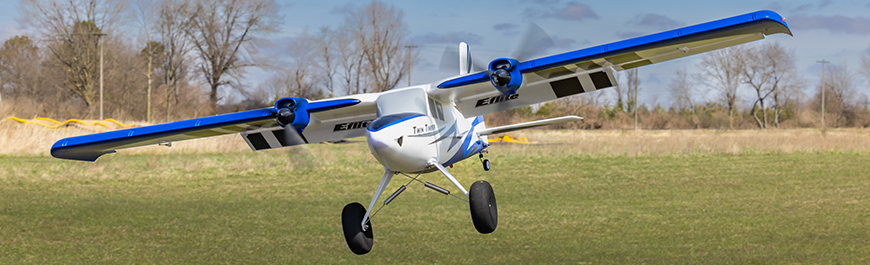

The wing design has a larger span and more area than the Timber X 1.2m and Turbo 1.5m models, plus it features drooped wingtips and can be equipped with the included optional-use leading edge slats for improved slow flight and STOL performance. These features, along with the lightweight design, oversized flaps, and high-power brushless power system, make it possible to spring into the air or float down to land in as little as a few feet or less.



Flexible Twin Power
Flexible Twin Power

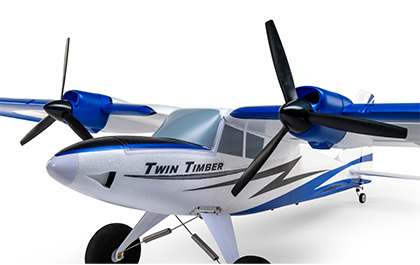

The factory-installed twin brushless power system features a 40-amp Spektrum Avian Dual Smart ESC plus specially-tuned motors that deliver an abundance of thrust with a 3S LiPo battery or more speed and unlimited vertical performance with a 4S battery without the need for any modifications or upgrades. Plus, the wing-mounted motors make it nearly impossible to break the counter-rotating props or damage the motors and mounts if you ever nose over!



Durable Precision
Durable Precision

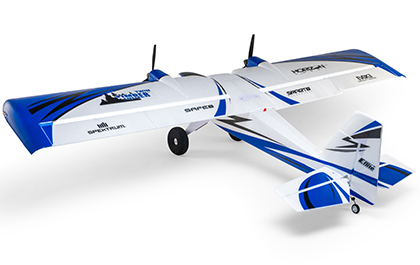

Composite-reinforced, hollow-core construction with EPO material delivers a lightweight yet durable airframe. And the factory-installed metal-geared servos are precise, durable, and reliable.



LED Lights
LED Lights

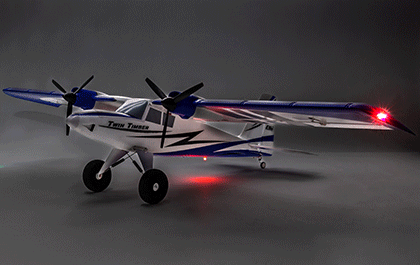

Like most other Timber models, the Twin Timber 1.6m comes with realistic-looking LED landing, navigation, and strobe lights that are factory-installed and powered by the flight battery.



Easy Assembly
Easy Assembly

No glue is required for assembly, and because the few parts that need to be assembled easily bolt into place, the Twin Timber can be ready to fly in less time than it takes to charge the flight battery. The two-piece wing featuring combined servo connectors makes it easier to remove/install the wing. Plus, a custom-designed clip in the fuselage holds the wing joiner, so you don't lose it when the wing is separated!



EFL23875 footer image

Product Specs

Minimum Required Radio
Full-range 5+ Channel Transmitter and Receiver
Battery
Sold Separately
Connector Type
IC3
Motor Size
3536-750KV
Product Length
42.99" (1092 mm)
LiPo Compatibility
3S, 4S
Completion Level
Plug-N-Play
Propeller Size
10 x 7 x 3, 3-Blade Propeller (CW, CCW)
Recommended Motor Battery
3S 11.1V or 4S 14.8V 2200–5000mAh LiPo with EC3™ or IC3™ Connector
Power Type
Electric
Servos
Included
Skill Level
Level 3
Trim Scheme Colors
Blue, White

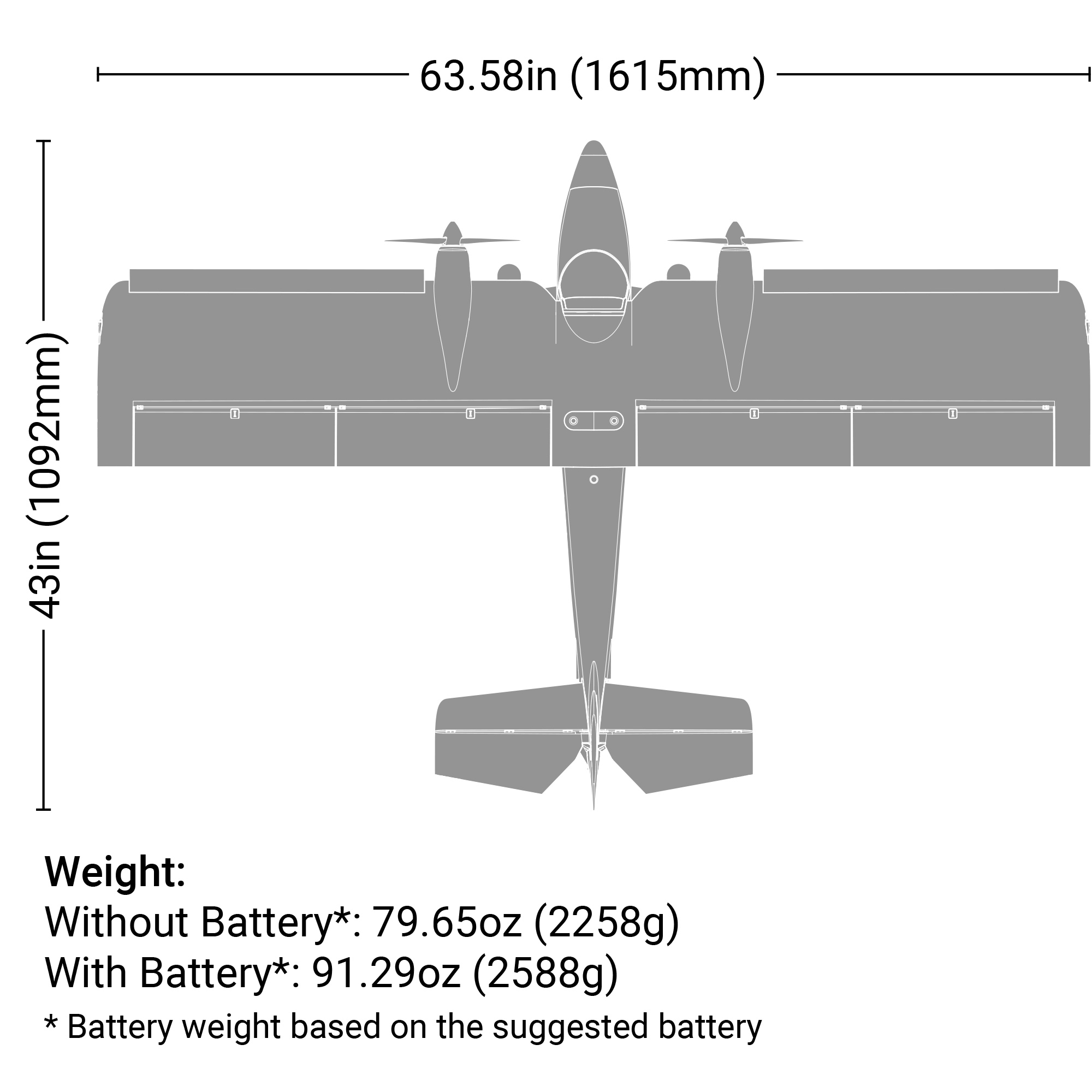

Wingspan
63.58" (1615 mm)
Product Weight
91.3oz (2588g) with 4S 3200mAh Battery
Radio
Sold Separately
Technology
Smart
Charger
Sold Separately
Receiver
Sold Separately
Motor Type
Brushless
Speed Control
Included
Approximate Assembly Time
Less than 1 Hour
Flaps
Yes
Material
EPO
